How PreFiS® Works

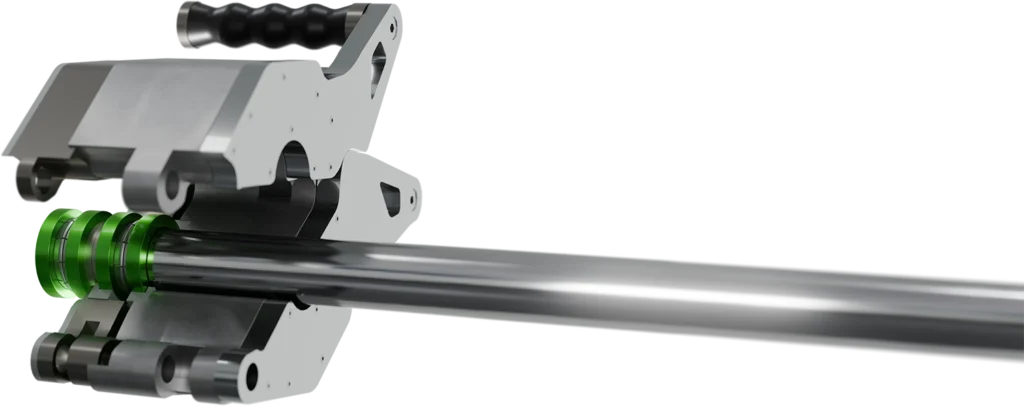

PreFiS® by Tube-Mac® is a high-performance press fitting system for creating permanent, non-welded connections in metal piping systems. It provides a reliable alternative to conventional welding and threaded connections, eliminating hot work and helping reduce installation time, manpower requirements and associated safety risks.
Designed for operating pressures up to 140 bar (2,000 psi), PreFiS® is suitable for demanding applications including high-pressure water mist fire suppression, CO₂ fire suppression and high-pressure cleaning systems. Its axial swaging technology creates a secure metal-to-metal connection without elastomeric seals, making it suitable for applications where long-term reliability and fire safety are critical.
Introduced in 1996, PreFiS® has been used across marine, oil & gas, automotive and petrochemical applications. The system has received certifications from leading marine and industrial authorities, including DNV, Lloyd’s Register (LR) and RINA, supporting its use in safety-critical piping applications.
PreFiS® Specification
Material and Sizes
PreFiS® is available in Carbon Steel and Stainless Steel material.
It is available from 1/2″ upto 3″ NPS, from 10mm upto 88.9mm Metric Tube Size.
Pressure and Temperature Ratings
Up to 140 bar pressure
Fitting Configurations
PreFiS® comes in
Turned Parts
1. End plug
2. Straight nozzle connector
3. Straight coupling with or without stop
4. Female stud coupling
5. Male stud coupling
6. Reducing coupling.
Forged Parts
7. 90° nozzle adapter
8. Nozzle connector tee
9. Equal cross
10. Reduced cross
11. Equal tee
12. Reduced tee
13. 90° angle
Benefits of PreFiS®
- No threading or welding needed; ideal for use on board vessels or in confined areas
- Suitable for welded and seamless carbon steel and stainless steel tube/pipe
- Customized PreFiS® tubes with reduced wall thickness on special request
- DNV, LR, and RINA approved for 140 bar water mist and wash water systems
- Press fitting installs in seconds
- No threading or welding needed; ideal for use on board vessels or in confined areas
- No expenses for NDT, such as x-raying
Certifications
Compliance
- ASME B31.1, ASME B31.3, ASME B31.4, ASME B31.8
- CRN (Canadian Registration No)
- NAVSEA (United States Naval Sea Command)
- ANZAC (Australia New Zealand Navy)
- US Coast Guard
Testing
- API 6FB Third Edition Nov. 98 Fire Test for End Connection Fittings
- ISO 19921 Fire Test, Fire Resistance of Metallic Pipe Components with Resilient and Elastomeric Seals
- US Military Navy Shock Test MIL-S-901D
Applications
PreFiS® fittings can be used across hydraulic, lubrication, oil, water and other utility piping applications, subject to the applicable pressure, temperature, material and fitting specifications.
HYDRAULICS
LUBRICATION
GREASING
OIL
WATER
Cost Benefit Analysis
Read the case study where the Pyplok® system proved to be a more cost-effective solution than traditional hot work system for on-site pipework fabrication and repairs.
FAQ'S
If I don't swage the fitting enough, do I have to cut it out and replace it?
No you don’t have to cut out and replace the fitting. Simply place the Pyplok® tool around the fitting and re-swage it. Check with the inspection gauge to ensure the proper swage diameter has been achieved. As a pre-engineered tool, you can swage the fitting hundreds of times and you will never damage the fitting. The Pyplok® tool will automatically stop at a pre-engineered diameter for each size.
