A leading engineering company had a requirement of Fabrication, Erection, Pressure Testing and Flushing the Hydraulic Piping for their (4) Four – Filter Press Equipment. Cenergy Offshore (CO) having expertise in this field was approached for this job. The pipe spools had to fabricated, tested and flushed in the customer’s lab in Haryana and then had to be moved to the site to be finally installed and commissioned.

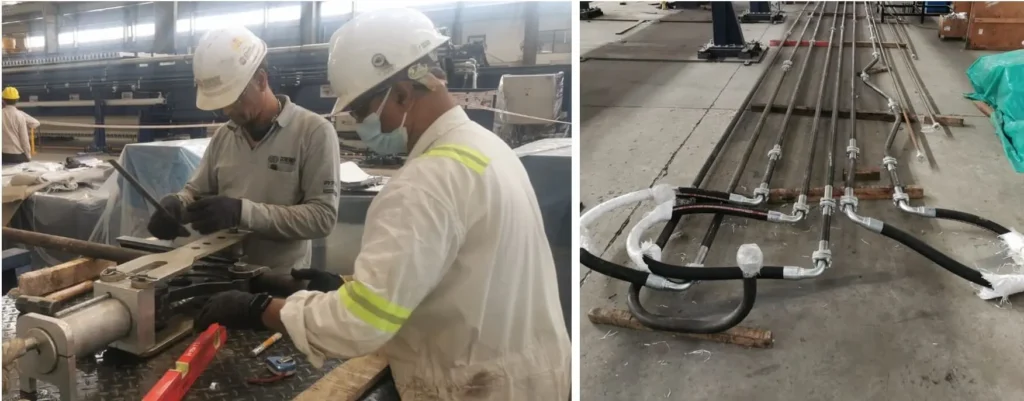

CO team fabricated the piping according to the customers routing requirement and successfully completed the pressure test and flushing within the set timelines. The fabrication (Flaring, Bending) was carried out using CO’s in-house equipment like Tube-Mac Flaring Machine, Bending Unit, Pipe Band Saws. Further, flushing and pressure test was also done using in-house equipment.
Features of the granulator hydraulic piping system are as follows:-

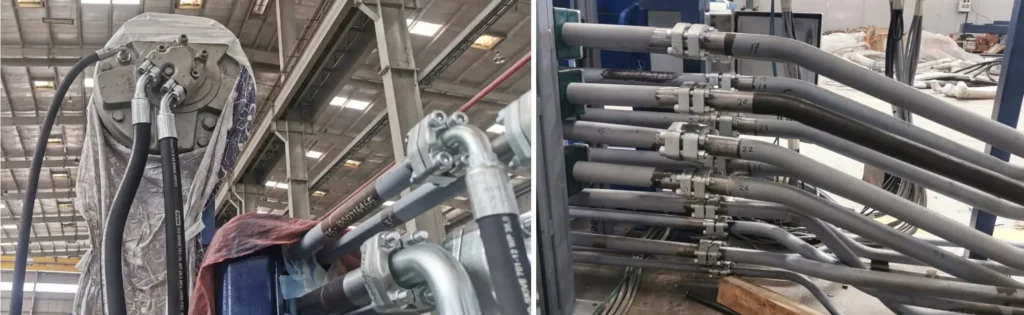

- Technology : Non Welded Piping – 37 Degree Flare Flange System
- Pipe Sizes : Metric- 25 mm x 3 mm, 30 mm x 3 mm, 38 x 4mm, 50 mm x 6 mm, and 60 mm x 6 mm
- System Pressure : 315 bar
- Piping Length : Approx 350 mtr (4 lines – Pressure, Return, Drain, Flushing)
The scope of work was as follows:-
- Fabrication of pipes – Flaring (37 Degree Flare), Bending (Non-Welded Piping Technology).
- Fitup of Piping System.
- Pressure Test of Piping System.
- Flushing of Piping System.
The customer has positively acknowledged the quality and reliability of CO as a solutions provider and has also given CO the responsibility of completing the erection and commisioning of the piping system at the customer’s site.
